XF-01
MEMIZO
XF-01
40m or customized
xpe foam
Waterproof, heat insulation, heat preservation, insulation, environmental protection, energy cost reduction
xpe foam Thermal insulation foam
Roof insulation, warehouse insulation, insulation box lining, pipe wrapping, automobile insulation, container insulation, cold storage equipment, etc.
| Size: | |
|---|---|
| Quantity: | |
| product name | foam foil insulation | |||
| normal length | 40m or customized | |||
| normal width | 1.2m or customized | |||
| Foam thickness | 2mm-8mm | |||
| coating color | blue, green, orange or customized | |||
| Reflectivity | 96%-97% | |||
| Provide ODM | Custom sizes, thicknesses, densities and materials | |||

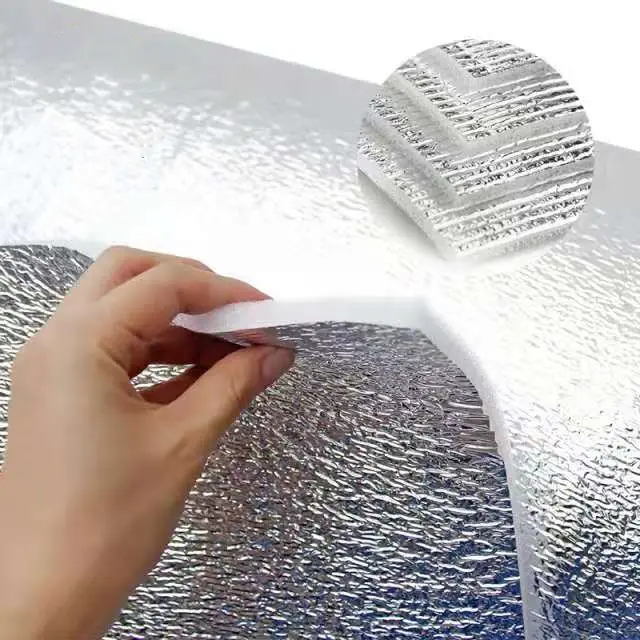

Engineer optimal thermal and acoustic insulation with our Sound Proofing Aluminum Foil XPE Foam Pad, featuring dual-layer construction for heat resistance and noise reduction. Designed for walls, floors, and roofs, this pad combines XPE foam, aluminum foil, and non-woven fabric, ideal for residential, commercial, and automotive applications.
Dual-Layer Insulation
XPE Foam Core: 5mm-thick XPE (density 30kg/m³) provides thermal resistance (R-value 0.5 m²·K/W) and sound absorption (NRC 0.8), reducing heat transfer and noise by 30% (ASTM C423).
Aluminum Foil Layer: 10μm-thick foil reflects 90% of radiant heat (ASTM C177), preventing heat gain in summer and loss in winter, with anti-condensation properties (dew point ≤10°C).
Durable & Versatile
Tear Resistance: Tensile strength 8MPa, elongation at break 150%, resisting damage during installation and use in rough environments.
Easy Installation: Self-adhesive backing (peel-and-stick) or compatible with construction adhesives, fitting seamlessly into walls (stud spacing 40-60cm) and floors (under laminate/wood).
Fire & Moisture Resistance
Fire Safety: B1 grade flame retardant (GB 8624), self-extinguishing within 5 seconds, ideal for residential and commercial buildings.
Waterproof Design: Aluminum foil and XPE closed-cell structure resist moisture absorption (≤5%, ISO 811), preventing mold and mildew growth.
Lightweight & Space-Saving
Low Density: 30kg/m³ density, 50% lighter than traditional fiberglass insulation, reducing structural load in roofs and walls.
Thin Profile: 5mm thickness fits in tight spaces (e.g., between joists, under floorboards) without sacrificing insulation performance.
Residential Use: Install in attics, basements, and exterior walls to regulate indoor temperature and reduce street noise (compliant with EN 13163:2012).
Commercial Buildings: Used in offices, schools, and hospitals for soundproofing conference rooms and thermal insulation in HVAC ducts (ASTM C1313).
Automotive Industry: Lines car roofs, doors, and floors to reduce engine noise and heat transfer, improving passenger comfort (ISO 3744 acoustic testing).
Q: Can this pad be used in wet environments like bathrooms?
A: Yes, the aluminum foil layer provides excellent water resistance, making it suitable for bathrooms and kitchens.
Q: What is the recommended temperature range?
A: Operational from -40°C to 80°C, maintaining thermal performance in extreme climates.
Q: How do I cut the pad to size?
A: Use a utility knife or scissors—ensure clean cuts for optimal adhesion and insulation performance.
Q: Is the adhesive safe for indoor use?
A: Yes, the adhesive is low VOC (≤10μg/m³), compliant with EC 1935/2004 for indoor air quality safety.
